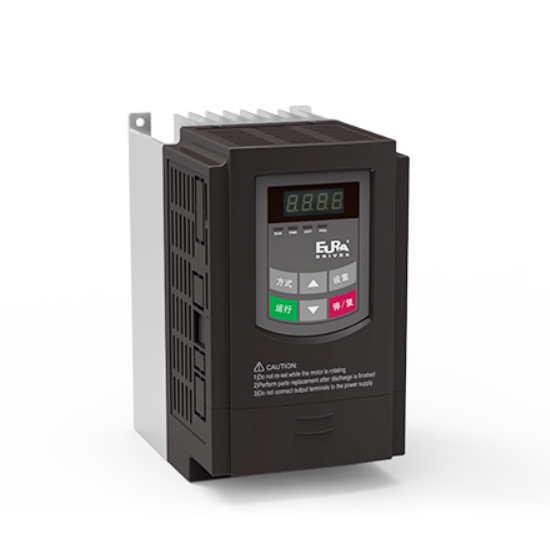

eURA E800 drive
The E800 Series Frequency Converter is a new generation of general-purpose vector-controlled inverters. Featuring advanced control algorithms and comprehensive system functions, it incorporates an internal EMI filter for enhanced electromagnetic compatibility design. Its compact structure and innovative appearance deliver high voltage utilization, high power factor, fast dynamic response, high precision, and low noise, meeting customer requirements for light-load applications.
Power Range: 0.4kW to 400kW
eURA E800 drive
- Supports VVVF control for AC induction motors and SVC control
- Features automatic carrier adjustment, automatic voltage adjustment, fast current limiting, and speed tracking to meet diverse customer requirements
- Supports SVC control for permanent magnet synchronous motors
- Optional built-in filter
- Output frequency range: 0.50–590 Hz (V/F), 0.50–500 Hz (SVC), with 0.01 Hz resolution
- Protection functions: Overload, overcurrent, overvoltage, input undervoltage, overheat protection
- Supports parameter copying to USB drive
Suitable for light-duty load industries such as engraving machines, HVAC, water supply, fans and pumps, extrusion machines, and textile machinery.
|

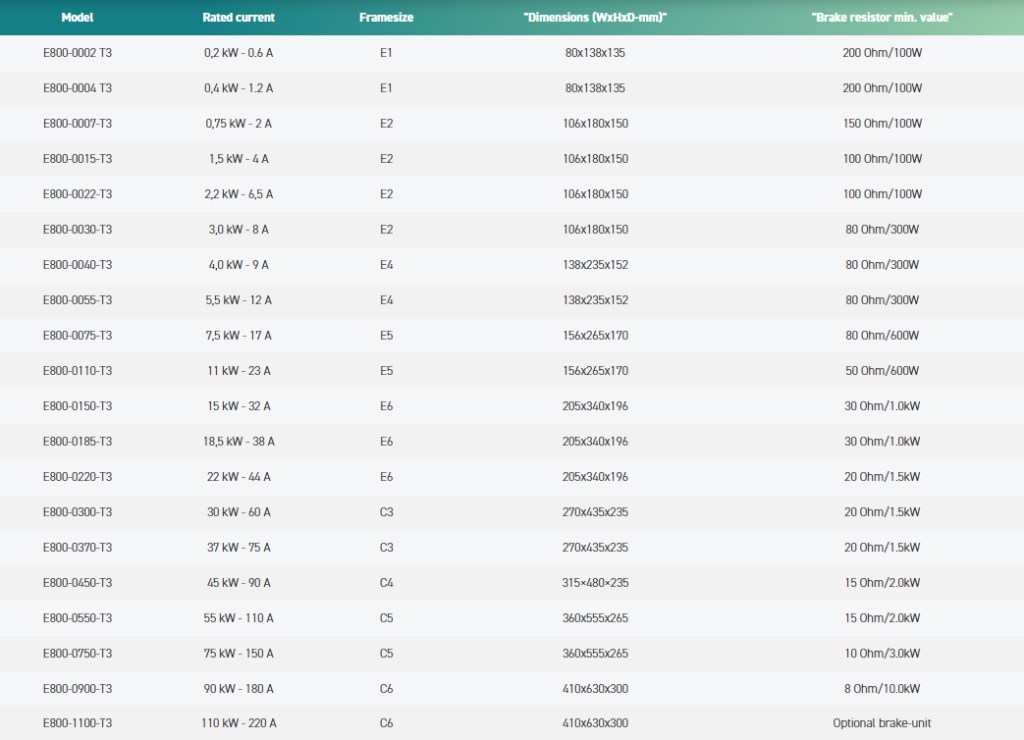

No. |
Model |
Action |
|
1 |
E800-0004S2E1 | |
|
2 |
E800-0007S2E1 | |
|
3 |
E800-0015S2E1 | |
|
4 |
E800-0022S2E2 | |
|
5 |
E800-0007T3E1 | |
|
6 |
E800-0015T3E1 | |
|
7 |
E800-0022T3E2 | |
|
8 |
E800-0030T3E2 | |
|
9 |
E800-0040T3E2 | |
|
10 |
E800-0055T3E4 | |
|
11 |
E800-0075T3E4 | |
|
12 |
E800-0110T3E5 | |
|
13 |
E800-0150T3E5 | |
|
14 |
E800-0185T3E6 | |
|
15 |
E800-0220T3E6 | |
|
16 |
E800-0300T3E6 | |
|
17 |
E800-0370T3E7 | |
|
18 |
E800-0450T3E7 | |
|
19 |
E800-0550T3C5 | |
|
20 |
E800-0750T3C5 | |
|
21 |
E800-0900T3C6 | |
|
22 |
E800-1100T3C6 | |
|
23 |
E800-1320T3C6 | |
|
24 |
E800-1600T3C7 | |
|
25 |
E800-1800T3C8 | |
|
26 |
E800-2000T3C9 | |
|
27 |
E800-2200T3C9 | |
|
28 |
E800-2500T3CA | |
|
29 |
E800-2800T3CA | |
|
30 |
E800-3150T3CB0 | |
|
31 |
E800-3550T3CB0 | |
|
32 |
E800-4000T3CB |
- The inverter for HVAC applications – compact, low cost and reliable
- Build in PID controller, with specific HVAC functions
- MODBUS interface for inverter control reading and setting of all I/O hardware channels via MODBUS-implementation in subsystems.
- Control mode V/Hz control for asynchronous motor, SENSORLESS control for permanent magnet synchronous motor (PMSM)
- Intelligent voltage, current and carrier frequency adjustment functions “catch on the fly”
- EMC filter (c3 class) integrated C1 footprint filter as option
