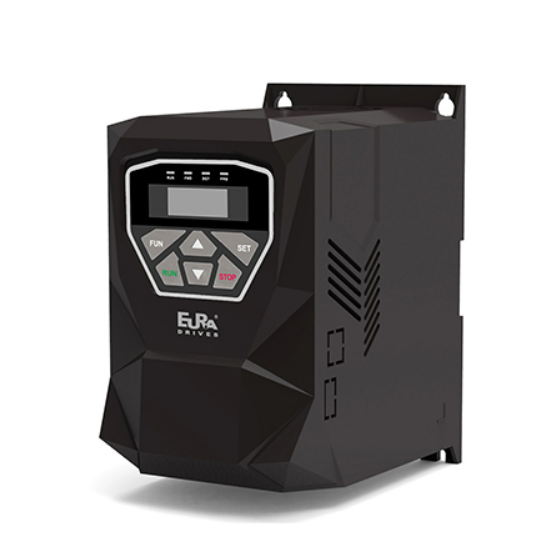

eURA E600 drive
The E600 Series is a simple, light-duty variable frequency drive. It features a compact size, high cost-effectiveness, reliable operation, and high EMC specifications.
- Best performance/cost ratio, without compromise in reliability and quality
- Compact design, easy to integrate in multiple environments: DIN rail mounting, contactor-style I/O
- Easy to setup: Simple set of optimized parameters for all basic functions and applications
- PID and HVAC functions -safety integrated- MODBUS – open for networking
- Internal EMC filter as standard: Ready for CE market
- Economical mass production on highly automated and dedicated SMT lines
- General purpose drive – made for the worldwide market(CE/ULCCC)
- Approved and certified by American independent bodies
eURA E600 drive
E600 Series, R3: EMC C3 Level Standard (Test Condition: 25m motor cable), available as an optional accessory.
Three-phase 380V models of the E600 Series brake unit are standard equipment; single-phase 220V models are available with built-in units as optional accessories.

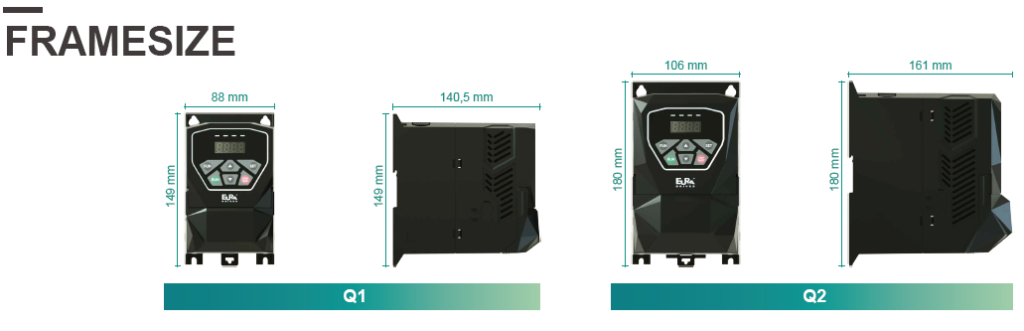

E600 Series Onboard Control Panel: Structure Codes Q1–Q2 (AG01, AG03) ;
E600 Series Remote Control Panel (A621, A622, A623, A624, AA21, AA23, AA25, AD21, AD23);
Communication Type: F2: Modbus (this function is optional);
Certification Type: U1, U5: CE+UL certification;
U9: STO+UL certification.
Suitable for fans, pumps, textile machinery, plastic processing equipment, electronic devices, and other general-purpose mechanical equipment.
|
Model |
Power |
Action |
|
E600-0004S2Q1U1XXXXXXXXXX |
0.4 | |
|
E600-0007S2Q1U1XXXXXXXXXX |
0.75 | |
|
E600-0015S2Q1U1XXXXXXXXXX |
1.5 | |
|
E600-0022S2Q1U1XXXXXXXXXX |
2.2 | |
|
E600-0007T3Q1U1XXXXXXXXXX |
0.75 | |
|
E600-0015T3Q1U1XXXXXXXXXX |
1.5 | |
|
E600-0022T3Q2U1XXXXXXXXXX |
2.2 | |
|
E600-0030T3Q2U1XXXXXXXXXX |
3 | |
|
E600-0040T3Q2U1XXXXXXXXXX |
4 | |
|
E600-0055T3Q2U1XXXXXXXXXX |
5.5 |
- Supports VVVF control for asynchronous motors
- Built-in filter with high EMC specification design
- Certified by STO, UL, and CE
- Supports parameter copy function
- Compatible with European interface standards
- Compact size, simple configuration, flexible application; DIN rail mountable
