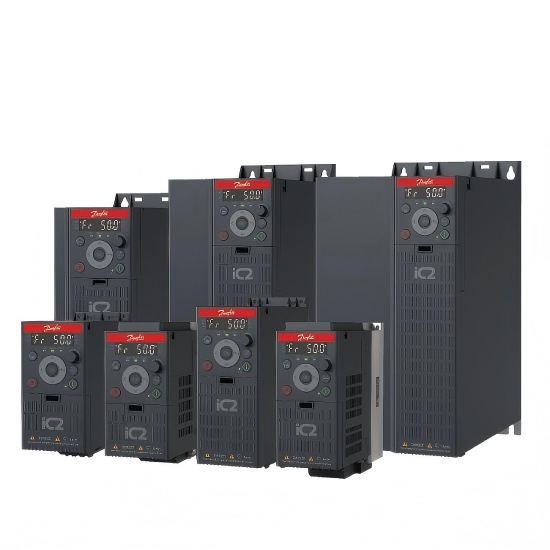

Danfoss iC2-Micro drive
iC2-Micro: the compact and exible drive.
This quality general-purpose drive is a perfect match for a wide range of applications.
iC2-Micro performs with unsurpassed reliability even in complex applications. It gives you user-friendliness, condensed functionality, and easy commissioning, all in a powerful compact package.
Danfoss iC2-Micro drive
Not only reliable, but also compact, flexible, and user-friendly. Save space and optimize your choice of motor.
Operates at 50 °C ambient temperature at full load, iC2-Micro is designed to perform optimally under full load at 50°C ambient temperature, and up to 55°C with derating. This gives you cost savings since there is no need to install extra cooling equipment, nor to oversize the drive.
Fits your application-
You can use the same drive in diverse processes, since the iC2-Micro is designed to optimize a wide range of applications such as
Pumps, Fans ,Material handling, Conveyors, Mixers, Packaging machines, Palletizers, Textile machinery.
|
Old Model |
Power |
P/N |
New Model |
Power |
P/N |
Action |
|
FC-051PK37T4E20H3XXCXXXSXXX |
0.37 |
132F0017 |
IC2-30FA3N04-01A2E20F4+ACXX |
0.37 |
132L6116 | |
|
FC-051PK75T4E20H3XXCXXXSXXX |
0.75 |
132F0018 |
IC2-30FA3N04-02A2E20F4+ACXX |
0.75 |
132L6117 | |
|
FC-051P1K5T4E20H3BXCXXXSXXX |
1.5 |
132F0020 |
IC2-30FA3N04-03A7E20F4+ACXX |
1.5 |
132L6118 | |
|
FC-051P2K2T4E20H3BXCXXXSXXX |
2.2 |
132F0022 |
IC2-30FA3N04-05A3E20F4+ACBC |
2.2 |
132L6119 | |
|
FC-051P3KOT4E20H3BXCXXXSXXX |
3 |
132F0024 |
IC2-30FA3N04-07A2E20F4+ACBC |
3 |
132L6120 | |
|
FC-051P4K0T4E20H3BXCXXXSXXX |
4 |
132F0026 |
IC2-30FA3N04-09A0E20F4+ACBC |
4 |
132L6121 | |
|
FC-051P5K5T4E20H3BXCXXXSXXX |
5.5 |
132F0028 |
IC2-30FA3N04-12A0E20F4+ACBC |
5.5 |
132L6122 | |
|
FC-051P7K5T4E20H3BXCXXXSXXX |
7.5 |
132F0030 |
IC2-30FA3N04-15A5E20F4+ACBC |
7.5 |
132L6123 | |
|
FC-051P11KT4E20H3BXCXXXSXXX |
11 |
132F0058 |
IC2-30FA3N04-23A0E20F4+ACBC |
11 |
132L6124 | |
|
FC-051P15KT4E20H3BXCXXXSXXX |
15 |
132F0059 |
IC2-30FA3N04-31A0E20F4+ACBC |
15 |
132L6125 | |
|
FC-051P18KT4E20H3BXCXXXSXXX |
18.5 |
132F0060 |
IC2-30FA3N04-37A0E20F4+ACBC |
18.5 |
132L6126 | |
|
FC-051P22KT4E20H3BXCXXXSXXX |
22 |
132F0061 |
IC2-30FA3N04-43A0E20F4+ACBC |
22 |
132L6127 | |
|
VLT Control Panel LCP 11 |
132B0100 |
Panel integration, no configuration required |
- PM motor compatibility
You win the freedom to choose the best high-efficiency motor for your application. iC2-Micro provides highly efficient permanent magnet motor control in open loop under VVC+ in the whole power range. - Integrated PID controller
The built-in PID controller ensures solid process control, such as constant pressure or constant flow operation. - Coated PCB
Printed circuit boards coating is as standard against corrosive gases (IEC 60721-3-3). This protection provides high reliability in harsh environments, preventing failures and unnecessary downtime increasing lifetime of the drive. - Integrated brake chopper
A built-in brake chopper saves money and panel space.
