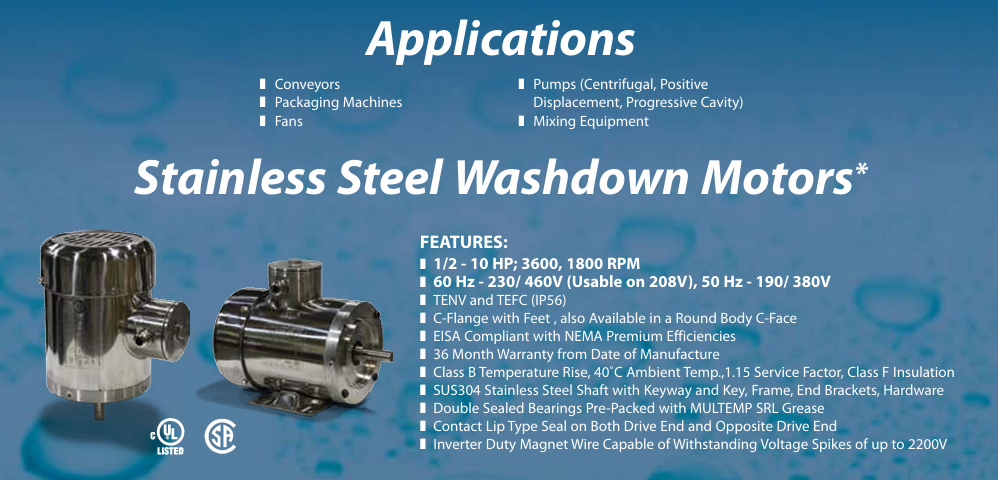

Stainless Steel Washdown NEMA Premium

Stainless Steel Washdown NEMA Premium

Notes:
(1) Consult a Stock Product Application Specialist for suitability in higher ambient environments.
(2) Consult a Stock Product Application Specialist for suitability at higher elevations.
(3) Motor service factor is 1.0 when operated on a VFD.
(4) Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1. Part 31
(5) Consult a Stock Product Application Specialist for encapsulated winding quote.
(6) TENV up to 1 HP.
(7) Turn down the same TEFC 60 min. duty intermittent.

Features

• Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
• Class F Insulation
• Class B Temperature Rise
• NEMA Design B Torques
• Stainless Steel Frame, End Brackets and Hardware
• Grounding Terminal Inside Main Conduit Box
• Stainless Steel Oversized Main Conduit Box – F3 Mounted (IM1001)
• Designed for 40˚C Ambient Temperature
• Designed for 3300 ft. Elevation
• Bi-Directional Rotation
• SUS304 Stainless Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Double Shielded Bearings Pre-Packed with MULTEMP SRL
• Contact Lip Type Seal on Both Ends
• Etched Nameplate on the Stainless Steel Frame
• New Dual Column Design Nameplate as Standard (60/50 Hz)
• Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
• Inverter Duty Speed Range: 10:1 Variable Torque, 4:1 Constant Torque
• 9 Leads
• Two Drain Holes on Bottom of Frame and one in the C-Flange
• Motors are U.L. Recognized, CSA Approved and CE Marked
• Department of Energy Efficiency Certificate # CC082A
• Encapsulated Windings as Option

Applications

Any Application Where the Motor Will be Subjected to High Pressure Spray Down, Marine Duty, Food Processing and Packaging
