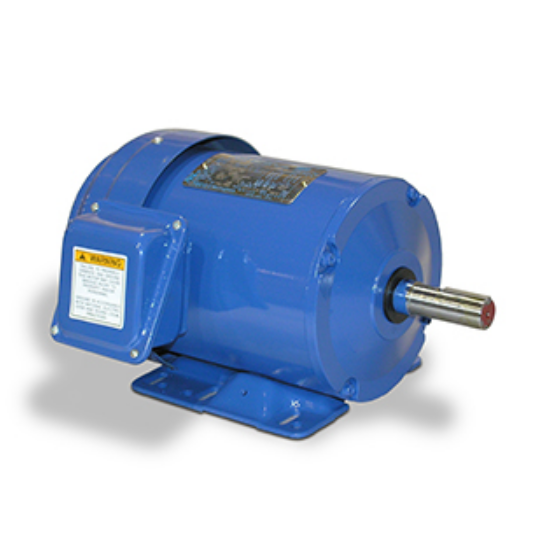

Rolled Steel TEFC NEMA Premium Efficiency

Rolled Steel TEFC NEMA Premium Efficiency

Totally Enclosed Fan Cooled, [GH], [GP], [GH_C], [GHV_C], [GP_C], [GPV_C]
AEGHPE, NEMA PREMIUM, F#56 (1/4 HP – 2 HP) [GH]
AEGH, NEMA PREMIUM, F#140T – 210T (1 HP – 10 HP) [GP]
AEGHPE-CF, NEMA PREMIUM, FOOTED C-FACE, F#56 (1/4 HP – 2 HP) [GH_C]
AETHPE, NEMA PREMIUM, ROUND BODY C-FACE, F#56 (1/4 HP – 2 HP) [GHV_C]
AEGHCF, NEMA PREMIUM, FOOTED C-FACE, F#140T – 210T (1 HP – 10 HP) [GP_C]
AETHCF, NEMA PREMIUM, ROUND BODY C-FACE, F#140T – 210T (1 HP – 10 HP) [GPV_C]
AEGH, FOOTED, NEMA PREMIUM WITH AEGIS® SGR [GP_G]

HP1/4 HP through 10 HP
Speed3600, 1800, 1200, 900 RPM
Voltage230/460V (Usable on 200 & 208V)
Frequency60 Hz
Inquire Now
Rolled Steel TEFC NEMA Premium Efficiency, TEFC

The AEGIS® SGR Bearing Protection Ring aids in preventing electrical bearing “fluting”damage by safely diverting harmful shaft voltages and bearing currents to ground. Using proprietary Electron Transport Technology™, the conductive microfibers inside the AEGIS® SGR provide reliable current diversion technology for shaft grounding with a “path of least resistance” to dramatically extend motor life.
AEGIS® Shaft Grounding Rings have a warranty of 1 year

Features
  • Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
  • Grounding Ring Factory Installed Externally on NDE Bracket
  • Class F Insulation
  • Class B Temperature Rise
  • NEMA Design B Torques
  • Rolled Steel Frame, Fan Cover, and Main Conduit Box
  • Grounding Terminal Inside Main Conduit Box
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments – F1 Mounted Only (F2 not available)
  • Designed for 40˚C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation
  • Cast Iron End Brackets
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
  • Paint Color: Blue – Munsell 5PB 3/8
  • Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
  • Stainless Steel Nameplate
  • New Dual Column Design Nameplate as Standard (60/50 Hz)
  • Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • 9 Leads for 5 HP and Smaller;
  • 12 Leads for 7.5 HP and Larger
  • Motors are U.L. Recognized for United States and Canada, CSA Approved and CE Marked
Applications

Fans & Blowers , Pumps, Compressors, HAVC Equipment
